SNAPXL Fiber Optic Patch Panels


Features & Benefits

  • Compact size perfect for limited space enclosures
  • UL Listed 1863

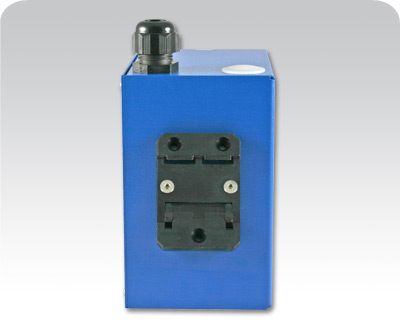

  • Versatile surface or DIN-Rail mount capability
  • Slide-hinged faceplate aids field termination
  • Patch or fusion splice field termination standard
  • Rugged metal construction with lifetime warranty

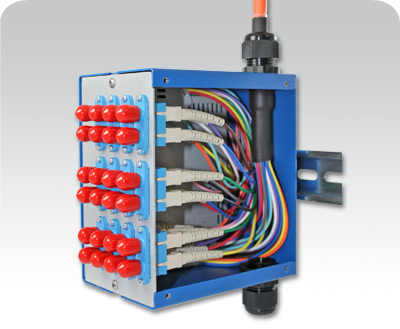

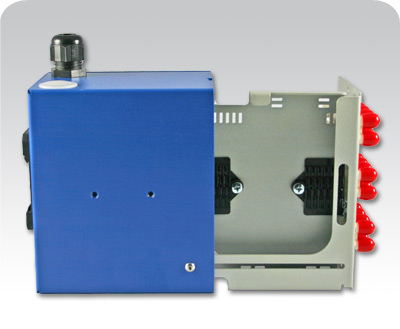

Compact DIN-Rail or surface mount fiber optic patch panel, with double the fiber connections of the standard SNAP patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes splice trays to allow fusion splicing of field cabling (pigtails sold separately). Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open “hands-free”. PDF Brochure

MultiMode SC/SC XL Fiber Optic Patch Panels
+

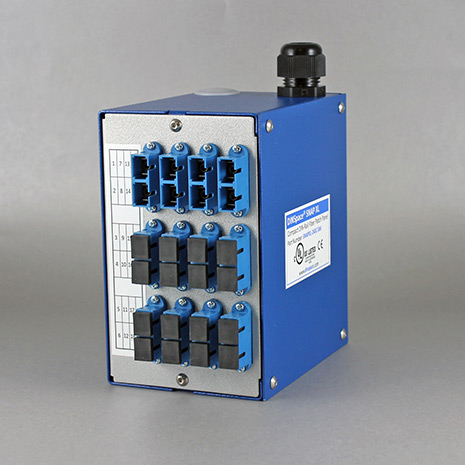

SNAPXL-24SC-MM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. Multimode SC/SC Duplex Adapters, UL/CE

Data sheet

SingleMode SC/SC XL Fiber Optic Patch Panels
+

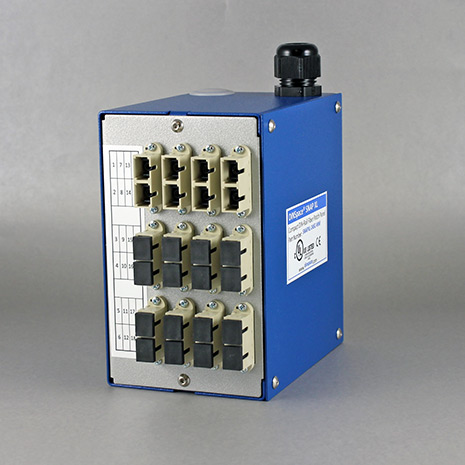

SNAPXL-24SC-SM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. SC/SC Singlemode Duplex Fiber Adapters, UL/CE.



Data sheet

MultiMode ST/ST XL Compact Fiber Optic Patch Panels
+

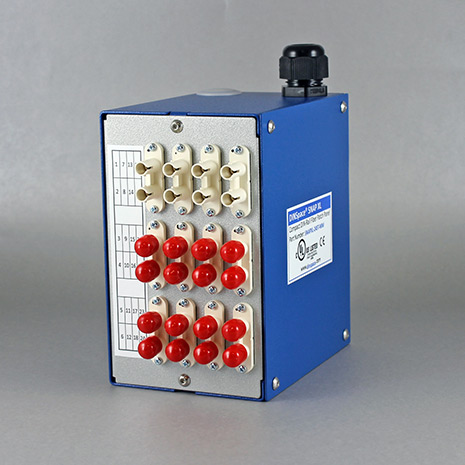

SNAPXL-24ST-MM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/ST Multimode Duplex Fiber Adapters, UL/CE.



Data sheet

SingleMode ST/ST XL Compact Fiber Optic Patch Panels
+

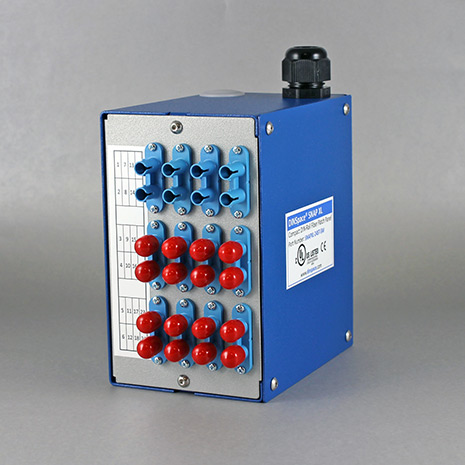

SNAPXL-24ST-SM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/ST Singlemode Duplex Fiber Adapters, UL/CE.



Data sheet

MultiMode ST/ST XL Compact Fiber Optic Patch Panels
+
SNAPXL-24ST-SC-MM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/SC Multimode Duplex Fiber Adapters, UL/CE.



Data sheet

SingleMode ST/SC XL Compact Fiber Optic Patch Panels
+
SNAPXL-24ST-SC-SM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. ST/SC Singlemode Duplex Fiber Adapters, UL/CE.



Data sheet

MultiMode LC/LC XL Compact Fiber Optic Patch Panels
+
SNAPXL-24LC-MM
:   lbs
!
snap-xl-lc

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. LC/LC Multimode Quad Fiber Adapters, UL/CE.



Data sheet

SingleMode LC/LC XL Compact Fiber Optic Patch Panels
+

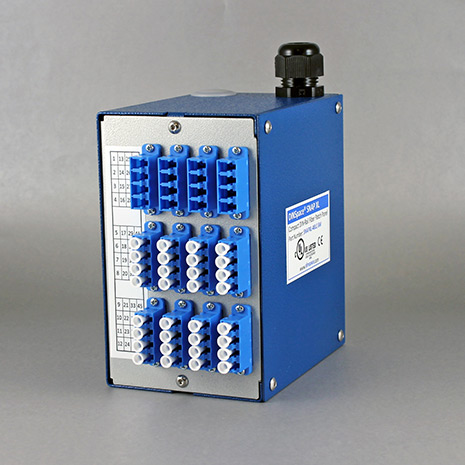

SNAPXL-24LC-SM
:   lbs
!

DINSpace SNAP XL Compact Fiber Optic Patch Panel with 12ea. LC/LC Singlemode Quad Fiber Adapters, UL/CE.



https://www.dinspace.com/Downloads/DINSpace-SNAP-XL-Specs.pdf
